Product Description:
One of the key features of this machine is its adjustable maximum flow rate of refining gas, which can be set between 6 to 30m3/h. This feature allows for flexibility in operations, making it easy to adapt to different refining needs.
The Aluminum liquid depth range of the Flux Injection Machine is also impressive, with a range of 600 to 1100㎜. This range ensures that the refining process is thorough and that the final output is of the highest quality possible.

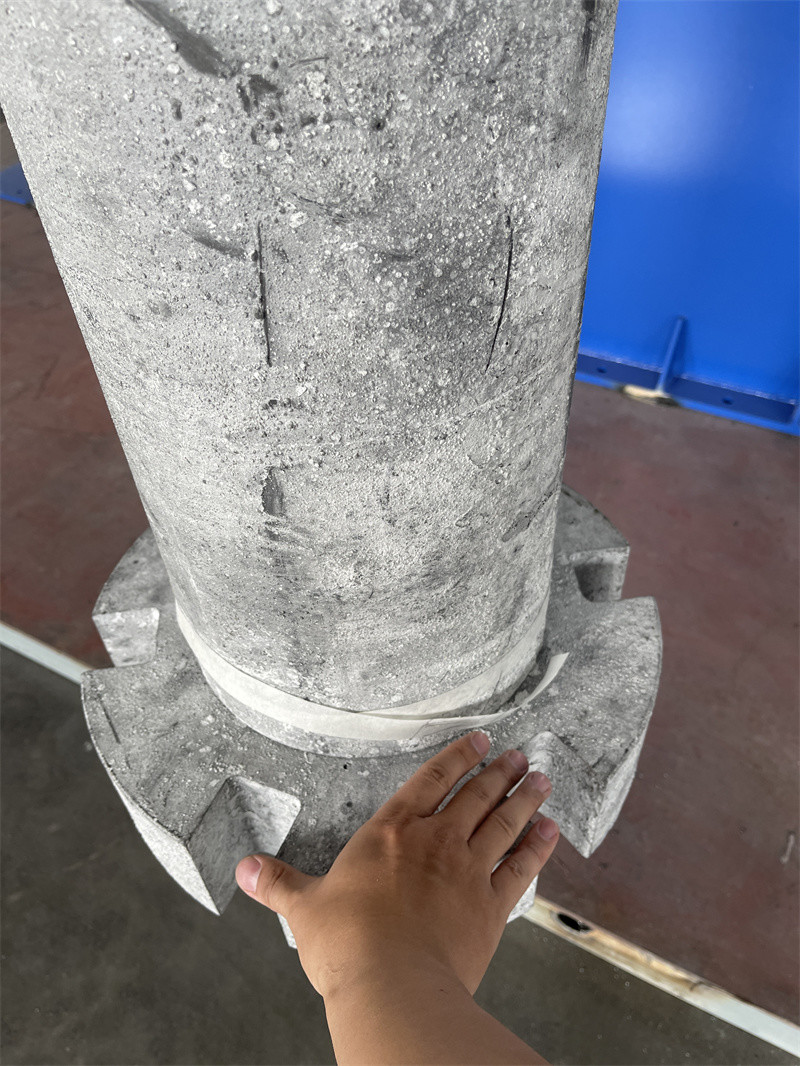

Another feature worth noting is the Graphite rotating rod size, which measures φ150x2130mm. This size is ideal for the effective removal of impurities from the molten aluminum, ensuring that the final product is free from any unwanted elements.
The maximum furnace time of the Flux Injection Machine, which includes preheating, refining, and other processes, is 90 minutes. This feature ensures that the refining process is thorough and efficient, resulting in a high-quality output.
Finally, the refining gas pressure of this machine is set between 0.4 to 0.6MPa, which is the ideal range for efficient and effective aluminum refining.
In summary, the Flux Injection Machine is an excellent choice for any aluminum refining operation. Its adjustable maximum flow rate of refining gas, impressive Aluminum liquid depth range, Graphite rotating rod size, maximum furnace time, and refining gas pressure make it a reliable and efficient tool for producing high-quality aluminum output.
Features:
- Product Name: Flux Injection Machine
- Refining flux: Granularity≤3mm
- Minimum cooling time between refining: 20min
- Maximum furnace time (including preheating, refining, etc.): 90min
- Refined gas purity: ≥99.996%
- Refining degassing time: 0～99min
- Features:
- Degassing slag removal and impurity
- Degassing and slag removal
- Degassing slag removal and impurity
Technical Parameters:
| Technical Parameter | Value |
| Graphite rotor size (mm) | φ356x100 |
| Refined gas purity | ≥99.996% |
| Motor power | 300W |
| Refining degassing time | 0～99min |
| Aluminum liquid temperature | 680-750℃ |
| Maximum flow rate of refining gas | Adjustable From 6～30m3/h |
| Refining gas pressure | 0.4～0.6MPa |
| Oxygen content | ＜5 Ppm |
| Power supply | 380V/220V±10% |
| Refining flux | Granularity≤3mm |
Rotary Flux Injector with rotor
degassing slag removal and impurity
Applications:
The HYDEB HDR-2133 Rotary Flux Injector with rotor is perfect for refining degassing slag removal and impurity. With a minimum cooling time between refining of 20 minutes and a refining degassing time of 0-99 minutes, this product is incredibly efficient. Additionally, the aluminum liquid temperature ranges from 680-750℃, and the oxygen content is less than 5 ppm, ensuring that the refining process is both safe and effective.
The graphite rotor size for the HYDEB HDR-2133 Rotary Flux Injector with rotor is 356x100 mm, making it the perfect size for refining impurities. This product is ideal for a variety of product application occasions and scenarios, including the refining of aluminum alloys, the removal of impurities from metal, and the degassing of molten metal.
Customization:
Product Customization Services:
Brand Name: HYDEB
Model Number: HDR-2133
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard exporting package
Delivery Time: 60 workdays
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Motor power: 300W
Power supply: 380V/220V±10%
Graphite rotating rod size mm: φ150x2130
Graphite rotor size mm: φ356x100
Aluminum liquid depth range: 600-1100㎜
Features: Customization services available for the Rotary Flux Injector, including degassing and slag removal, as well as aluminum refining.
Support and Services:
The Flux Injection Machine product technical support and services include:
- Installation and setup assistance
- Product training and education
- 24/7 technical support via phone or email
- Regular software updates and product enhancements
- Warranty and repair services
- Product documentation and user manuals
- Field service support for on-site assistance
Packing and Shipping:
Product Packaging:
- 1 Flux Injection Machine
- 2 syringes (10 ml each)
- 1 power cord
- 1 user manual
- 1 warranty card
Shipping Information:
- Shipping method: UPS Ground
- Shipping weight: 12 lbs
- Shipping dimensions: 14 in x 10 in x 8 in
- Shipping cost: $25
- Estimated delivery time: 3-5 business days
FAQ:
Q1: What is the brand name of the Flux Injection Machine?
A1: The brand name of the Flux Injection Machine is HYDEB.
Q2: What is the model number of the Flux Injection Machine?
A2: The model number of the Flux Injection Machine is HDR-2133.
Q3: Where is the Flux Injection Machine manufactured?
A3: The Flux Injection Machine is manufactured in Jinan, China.
Q4: What certifications does the Flux Injection Machine have?
A4: The Flux Injection Machine has CE and ISO9001 certifications.
Q5: What are the payment terms for purchasing a Flux Injection Machine?
A5: The payment terms for purchasing a Flux Injection Machine are L/C and T/T.
