Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment

Name: Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment
Brand: HYDEB
Price: 16000 USD

China Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment wholesale

Brand Name : HYDEB

Model Number : HBQ-256

Certification : CE ISO9001

Place of Origin : Jinan, China

MOQ : 1 set

Price : 16000USD/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per year

Delivery Time : 45 workdays

Packaging Details : Standard exporting package

Power (kW) : Power (kW):

Product Name : Molten Aluminum Transfer Ladle

Molten Aluminum Transfer Ladle : more than 90 KM

Capacity : 500-5000KG or customized

Natural temperature drop : less than 10 ℃/h

Weight (T) : T

Contact Now

Long-distance molten aluminum transfer ladle Recycled Aluminum Equipment

Long-distance molten aluminum transfer ladle Recycled Aluminum

Equipment Introduction
 • The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum
 casting factory.

Equipment Features
 • No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed,
 with molten aluminum not to overflow even if the ladle body topples over.
 • Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating
 Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the
 working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle has low surface
 temperature, suitable for long-distance transportation.
 • Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low
 ladle body weight.
 • Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory
 casting material, has good aluminum tolerance and high resistance to corrosion by molten aluminum.
 • High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal
 shocks without falling off.
 • A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in
 continuous use.
 • The lade cover actuator (optional) helps to open the ladle cover with ease.

 	 			Items 			Parameters 			Remarks
 			Modle 			HBQ-230
 			Heating Type 			Small; Medium; Big
 			Max. Burning Calorific Value 			20x104 Kcal/h
 			Max Heating Temperature 			1100℃
 			Working Heating Temperature 			0-850℃
 			Heating Rate 			0-50 ℃/min Adjustable
 			Time to Reach Temperature 			0-60 min
 			Heating Temperature Uniformity 			≤50 ℃
 			Lifting Power 			Air Cylinder Driver
 			Lifting Stroke 			0-400mm
 			Gas 			Gas Type 			Natural Gas
 			Gas Pressure 			5000 ±5% Pa
 			Gas Flow 			≤24 m³/h
 			Power 			Voltage 			380 V, 3P
 			Frequency 			50HZ
 			Rated Power 			3 KW
 			Compressed Air 			Pressure 			0.5-0.7 MPa
 			Flow 			≤50 M3/H



Product Tags:

Recycled Aluminum Transfer Ladle

90KM Molten Aluminum Transfer Ladle

Long Distance Aluminum Transfer Ladle

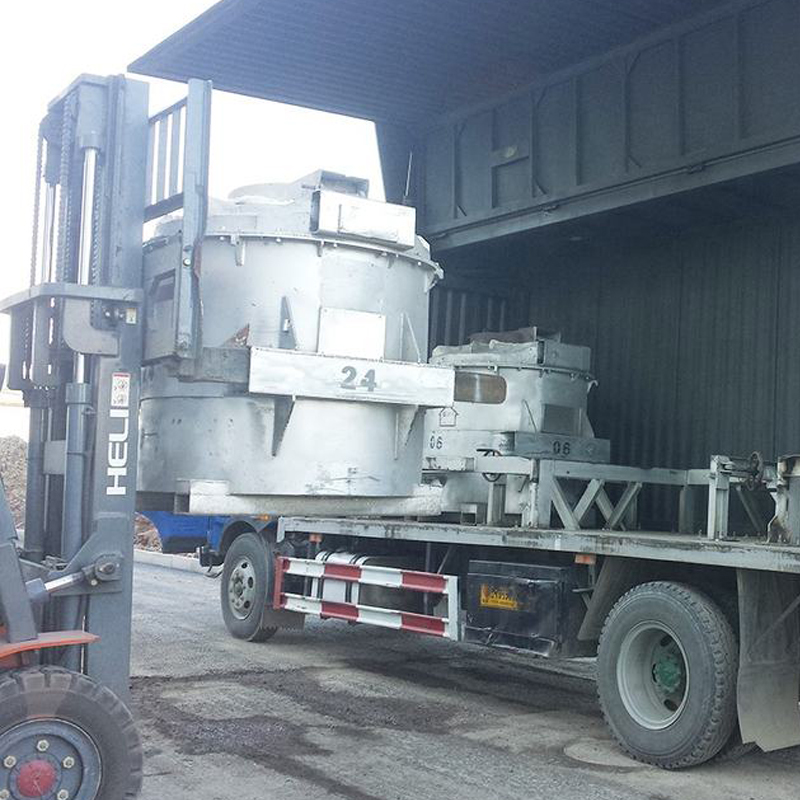

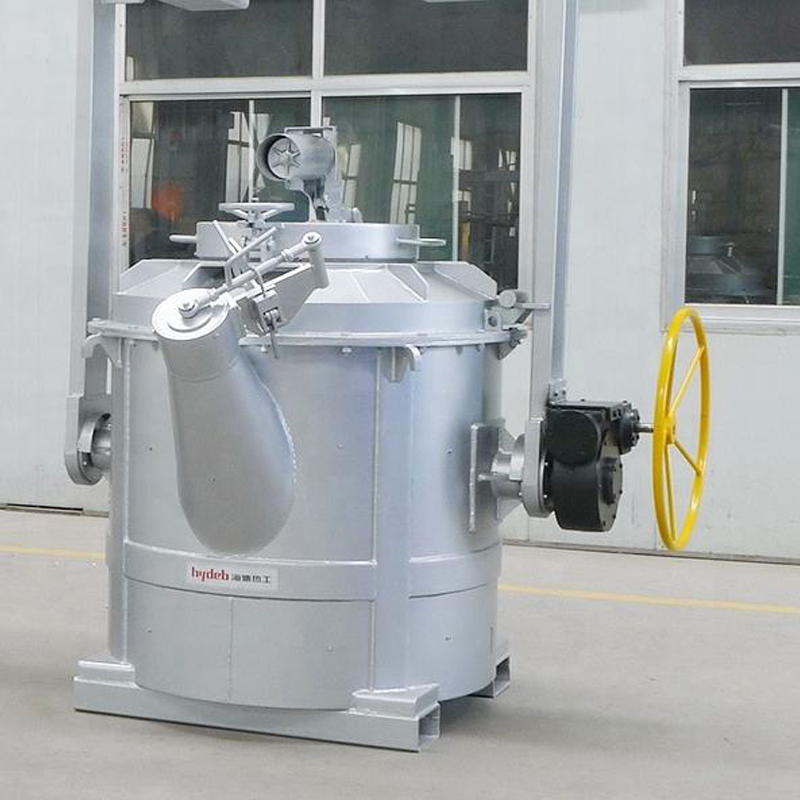

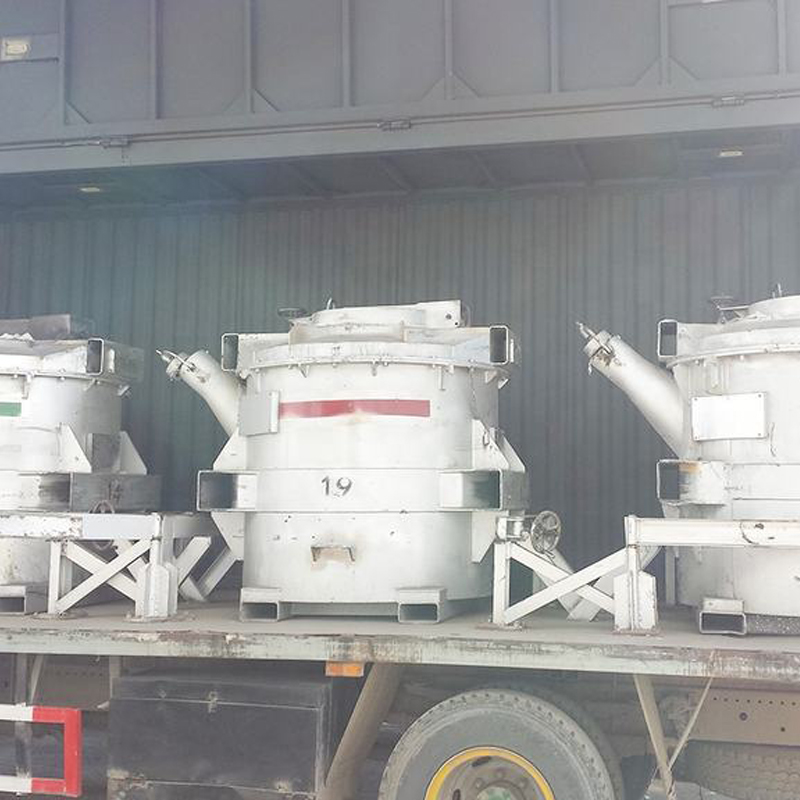

Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment Images
