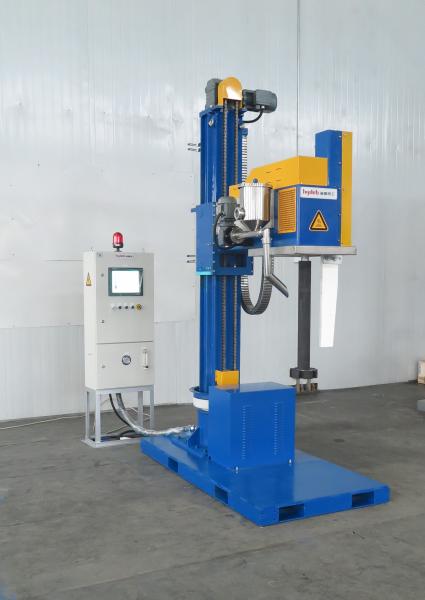

400-600rpm Rotary Speed Fixed Type Degassing Unit of Aluminum Foundry
With Graphite Rotor and Shaft Rotary Degassing Device
As Hydrogen gas leaves the solidifying metal, it leaves tracks in the metal in the form of porosity. Such porous Aluminium castings are not acceptable in the industry for obvious reasons. To avoid this kind of porosity, it is important to degas the metal before it is poured into moulds for solidifying. It is therefore important to determine the extent of Hydrogen present in liquid Aluminium. And the degassing unit for aluminum foundry is important.
1. Degassing Unit Technical Data
| Item | Data | Mark |
| Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
| Moisture ppm | ≤ 3 |
| O2 ppm | ≤ 5 |
| Pressure MPa | 0.1-0.6 Adjustable |
| Flow L/min | 15～30 Adjustable |
| Refining Flux | Granularity mm | ≤5 | |
| Powder Spraying g/min | 0～350 Adjustable | |
| Power | Phrase | 3 | |
| Voltage V | 380±10% |
| Frequency Hz | 50 |
| Total Power kW | < 3 |
| Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
| Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
| Motor for Arm Rotation | Power kW | 0.4 | For driving the hanger arm |
| |
| rotation |
| Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
| Graphite Rotor Speed r/min | 0-600 | VVVF adjustable |
| Refining Degassing Time min | 0～99 | Time Adjustable |
| Graphite Shaft Size | Dia. Φ mm | 80 |
| Length mm | According the design |
| Graphite Rotor Size | Dia. Φ mm | According the design |
| Length mm |
| Graphite Baffle Size | Length mm |
| Width mm |
| Thickness mm |
| Number of Graphite Baffle | 1 |
| Weight kg | About 600 | According to actual production |
2. Hydeb Company Introduce
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
high requirements for product safety and advancement.
3. Hydeb Clients
4. Degassing Unit Application
• Aluminium foundries
• Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
5. Degassing Unit Benefits
• Continuous operation
• Accurate flux injection under the metal level
• Programmable Logic Controller (PLC) monitors and controls operation
• Variable speed electric motor
• Auto-timer and flashing light notify the operator when the cycle is done
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating
6. Models
| Structure | Stationary type | Mobile Type | Suspending Type | Stationary type |
| Type | XCP230-1 | XC210-1 | XCP100-1
| XCP230A |

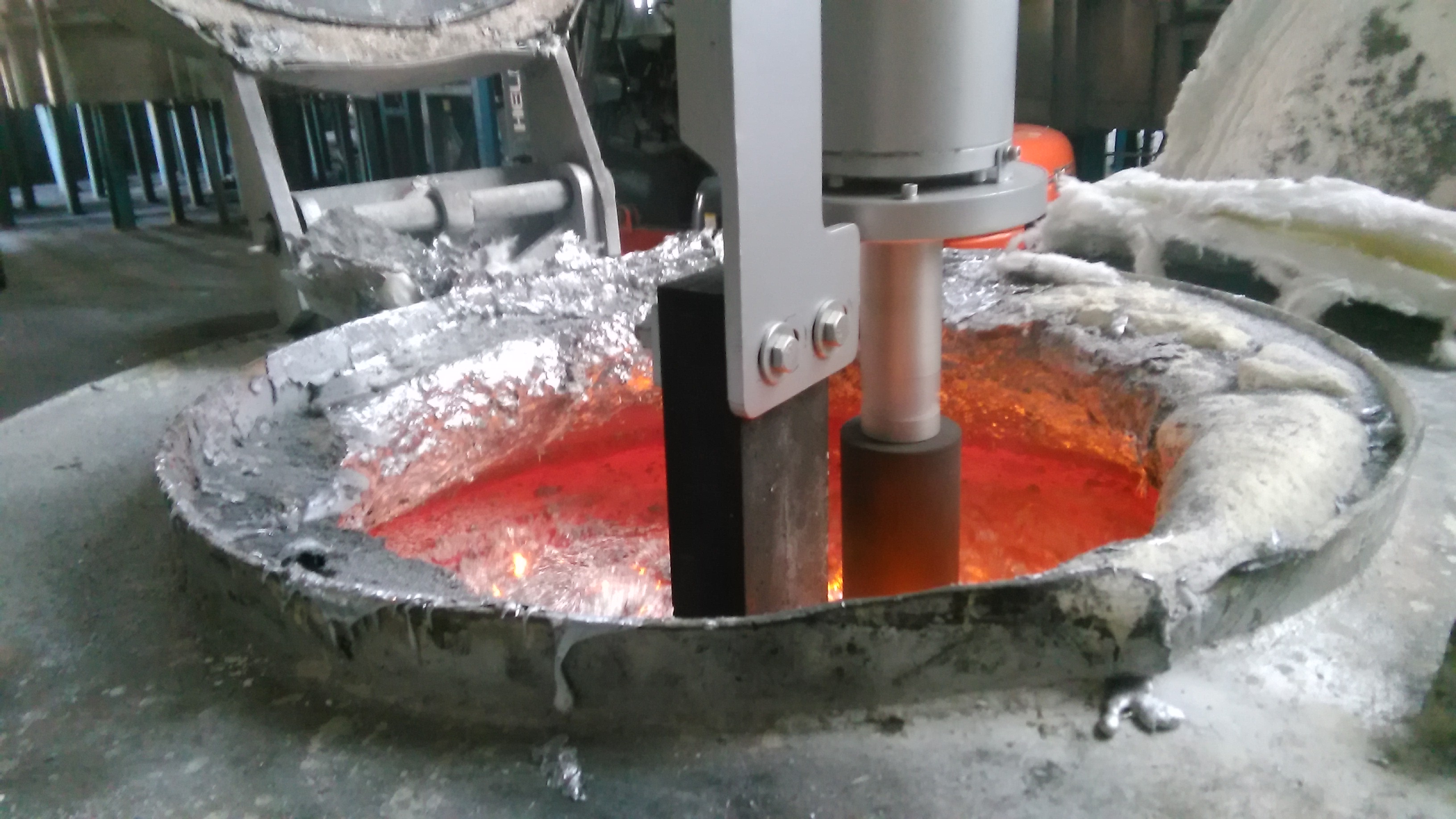

7. Reference Pictures
8. Our Strengths
9. CE Certificaiton
